C970L FAQ

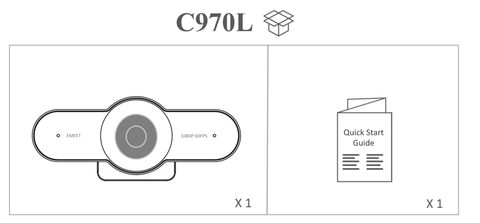

1. What's in the box of EMEET webcam C970L?
It contains a C970 webcam and a quick start guide.

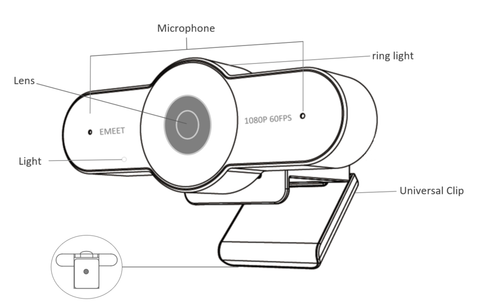

2. Device display of EMEET C970
3. How do I use a USB Webcam?
- Turn on
Plug the USB-A connector into your computer, the device will automatically turn on.
Then open the software you want to use with the webcam, the device status indicator will show white.
- Turn off
Unplug the USB connector to your computer or laptop, the device will automatically turn off.
Also, an easier way is to put the lens back to the stand, facing upwards to activate the auto privacy protection.
- Plug-and-play supports your computer to recognize the webcam immediately.
Note:If your computer does not instantly recognize the webcam, try to plug it into a different USB port or restart the computer.
4. How to install the device on a tripod?
-
Look for a 1/4 threaded hole in the bottom of the camera.
- Twist the webcam and tripod together until they are snugly joined.
- Place your webcam with the tripod anywhere you desire to the best position to frame yourself.
5. How to install the device on the PC?
- Place your webcam on a computer, laptop, or monitor at a position you desire.
- Unfold the universal clip so it fits the top of your monitor or laptop screen.
- Manually adjust the webcam up/down to the best position to frame yourself.
6. How to adjust the camera picture parameters？
Please connect the device to the computer and refer to the steps below:
- Connect the device to the computer via USB cable.
Firmware Update
- In the upper right corner, you can see your device’s firmware version.
- Also, you can click the “update” button to get the latest version.
Camera Settings
- You can open or close the auto privacy protection mode and flip mirror the image.
Video Setting
- You can set the power line frequency (anti-flicker) according to your own needs, also adjust the filters, brightness, contrast, sharpness, saturation, and white balance.
- If you want to restore all settings, click "Restore Defaults".
Note: Only in customize filters mode, the other parameters can be adjusted.
7. How does the auto privacy protection feature work?
- The EMEET 1080P 60FPS Webcam C970L has an electronic privacy function to protect personal privacy.
- When the lens body is close to the upper bracket and the angle is less than 10°, the electronic privacy function is turned on.
- At the same time, the video will be closed and the microphone will be muted. Your screen will also show the mute icon.
- Simply pull up the lens from the stand to recover video and audio in 3 seconds.
8. How do I use a webcam with a ring light?
Compared with the C970 camera, the C970L camera has a ring light with three levels of light adjustment, which can make the face clearer in a dark environment.
Just gently touch the top of the webcam to adjust the light.
Note: The ring light on the camera can't be removed. Just turn it off when you do not need the light.
9. How many fps does this webcam capture?
The EMEET SmartCam captures video at a resolution of up to 1080P and 60 frames per second (fps).
The 60 FPS camera means you can get a clearer video experience. Compared with the 30 FPS camera, there will be no jamming and drag.

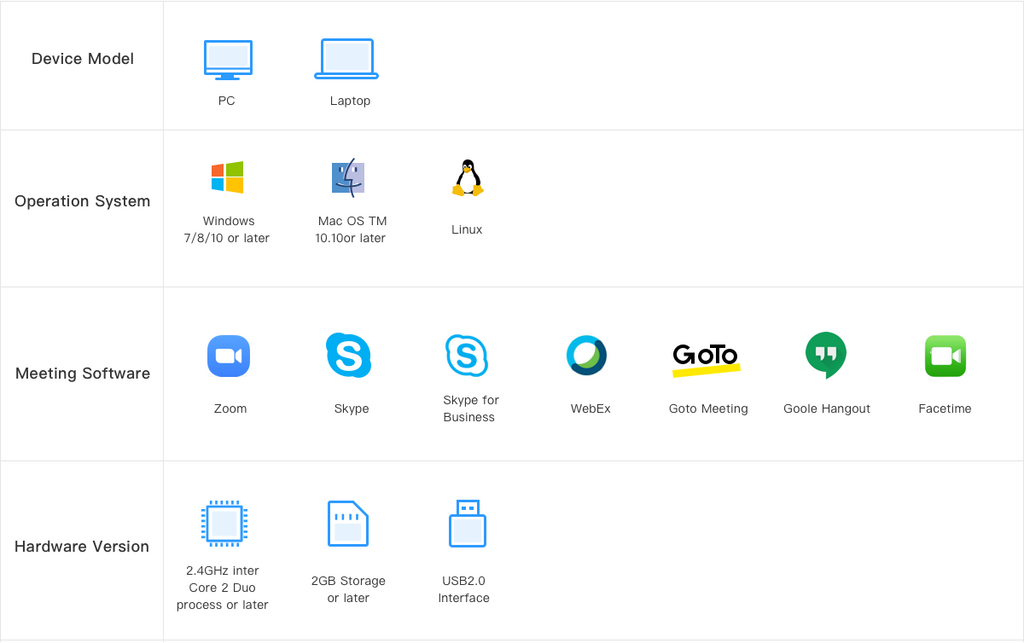

10. What about the compatibility of C970L?
11. How to set up my device on the Mac system?
Connect your device to the computer at first. Then select System Preferences > Sound.
(1) Setting Default Microphone
Under the Sound tab, click Input, and then select EMEET Streaming Webcam C970L as the default microphone.
(2) Camera Switching
"Photo Booth" software as an example
- Open the "Photo Booth" software
- Click the "camera" option in the menu bar.
- Select "HD Webcam EMEET C970L"
12. How to set up my device on the Windows system?
Connect your device to the computer at first.
(1) Setting the sound
Open the sound setting page Right-click the 🔊 icon from the lower right corner of the computer, then click "Open Sound Settings".
Test the microphone of EMEET C970L on your computer:
- select EMEET C970L as the input device.
- Tap the device or say something.
- Then you can see the volume bar fluctuates.
(2) Setting the camera privacy
- Enter your computer settings.
- Click "privacy", and then select "camera" to display the settings.
- Allow access to the camera on this device: click change to enable camera access.
- Allow apps to access your camera: enable permission to use the EMEET camera normally.
13. How to set my device as default?
(1) Search for "Control panel" in the lower-left corner, open the control panel, and select "Hardware and Sound".
(2) Select "Manage audio device" in sound.
(3)Set EMEET device as the default microphone
- Click the Recording tab on the top of the displayed setup window.
- Under the Recording tab, select EMEET C970L, and then click the "Set as Default device".
- Double click the microphone EMEET C970L and click "levels".
- Drag the slider to the volume level you want, and click "OK" to save the changes.
14. How to start a meeting on Zoom?
After connecting your EMEET C970L to the computer, start your meeting on Zoom with the following steps.
(1) Click the settings icon on the top right.
(2) Click the "Video", then select “HD Webcam EMEET C970L” as the camera device.
15. How to start a meeting on Skype?
After connecting your EMEET C970L to the computer, start your meeting on Skype with the following steps.
16. How to start a meeting on Skype for Business?
After connecting your EMEET C970L to the computer, start your meeting on Skype for Business as the following steps:
- Click the lower left button to select your primary device.
- Or click the audio device settings to enter the setting interface.
- Select the "Video Device" option, then set the camera to “HD Webcam EMEET C970L”.
- Select the "Audio Device" option, then set the microphone to “HD Webcam EMEET C970L”.
17. How to start a meeting on Google Meet?
(1) Allow sites to use your camera- Step1: open your Google website, enter the settings display by clicking the right-upper.
- Step2: click Security and Privacy, then click Site Settings.
- Step3: Select Camera in site settings. Then select your camera device, and click "Sites can ask to use your camera".
(2) Allow the app to use your camera
- Step1: Select Google meet in site settings.
- Step2: Select allow cameras to visit the Google Meet site.
(3) Select as default device
(2) Choose HD Webcam EMEET C970L as your Microphone.
(4). The update needs about 1min. In this period, you will see a progress bar to let you know the status of the update.
(5). Once the update finishes, pls restart the EMEET webcam.
- Step 1: Click the Setting button at the top right.
- Step 2: Choose EMEET C970L as the microphone device: the blue volume icon will fluctuate when you say something.
- Step 3: Choose EMEET C970L as the Video device: you will see the image from the right side.
18. How to start a meeting on Microsoft Teams？
(1) In the Microsoft Teams main window, click your profile picture in the top right of the window then select Device Settings from the drop-down menu.
(3) Scroll down to Camera. Then Choose HD Webcam EMEET C970L as your Camera.
19. How do I update the firmware of my webcam？
Please download the EMEET PC software eMeetLink first.
(1). Connect the EMEET webcam and the computer via a USB cable.
(2). Turn on the eMeetLink and enter the settings interface.
(3). Click upgrade to update the firmware.
(5). Once the update finishes, pls restart the EMEET webcam.
Kindly note: During the upgrade, do not disconnect the USB cable. In addition, please do not use the USB hub, it may lead to a failed upgrade.
20. What is the resolution of video conferencing?
The EMEET webcam all have 1080p resolution, but most video conferencing platforms will downgrade video resolution.
If the internet is slow, either on the network in the building or over the internet anywhere along the path between the EMEET webcam and the remote participants, the platform will adjust and lower the video resolution in order to send less data. This can also happen to compensate for multiple endpoints on a call. Some video conferencing platforms will default to a lower resolution.
If you are noticing a low quality video, you can try increasing your building's internet speed, or changing video conferencing platforms.
Alternatively, if the meeting software can adjust the resolution, you can adjust the resolution directly.
