What is EMEET StreamCam One ?

As communication equipment develops, mobile live streaming has become an inevitable trend, but traditional live streaming equipment often has problems such as being too expensive, difficult to operate, and various data lines being tangled. EMEET StreamCam One, as a multi-position and wireless streaming camera, has made the complex and expensive live streaming equipment easy to use and reasonably priced, and its completely wireless live streaming form allows users no longer to be troubled by data lines. With the help of the EMEETSTREAM software on the mobile phone, users can add materials during live streaming and push live streaming to multiple platforms, so that users can share the wonderful moments of on-site activities comprehensively and simply. For users who are new to live streaming, EMEET StreamCam One can effectively provide them with professional and simple wireless multi-position live streaming solutions.

What scenarios can StreamCam One be utilized?

StreamCam One can meet your live streaming and recording needs for a variety of scenarios such as weddings, food tutorials, handicrafts, teaching, sports, music performances, and podcasts, so you can share your wonderful moments with online audiences and immerse yourself in the scene.

Weddings: Let friends from afar also share the joy and emotion of the moment.

Food Tutorials/Handicrafts: Every step of tutorial is full of details and clearly presented.

Teaching: All-Round teaching, efficient learning simplified.

Sports: Combine distant and close-up, master the details of the actions (Indoor/Softball).

Live Music: Start your own online concert anytime, anywhere.

Podcasts: Clearer and brighter voices, better auditory experience.

What's in the box?

A single EMEET StreamCam One package includes the following items:

EMEET StreamCam One*1

Carrying pouch*1

User manual*1

Safety guide*1

Mic Windscreen*1

C-A adapter*1

C-C cable*1



How to Install and Use StreamCam One

You can place it directly on a flat surface, such as a desktop, or use a standard 1/4" threaded tripod mount to install it at the bottom of the StreamCam One.

Note: StreamCam One supports inverting. After connecting the camera, you can select camera parameters in the app, enable autoflip, and invert according to the requirement.

How to start StreamCam One?

Please press and hold the power button on the back of the StreamCam One for 2 seconds until the back power indicator light turns white and the front status indicator light turns steady blue. If the front status indicator light of the StreamCam One turns flashing green while the back power indicator light stays white, indicating the current power, then the StreamCam One has been fully powered on and you can proceed to the next step.

StreamCam One specifications

The camera's metering mode refers to a setting that is used to measure the intensity of light so that the camera can automatically adjust exposure and other parameters according to the strength of the light. Common metering modes include the following:

1. Average metering mode: The camera will measure the brightness of the entire picture area and determine the exposure parameters according to the average brightness of the picture, which is suitable for most cases.

2. Central-Weighted Metering Mode: The camera will only measure the brightness of the central area of the picture, which is suitable for scenarios that need to emphasize the main body.

3. Spot Metering Mode: The camera will only measure the brightness of the area where the focus is located, which is suitable for scenarios that require accurate measurement of a point.

4. Matrix Metering Mode: The camera will divide the entire picture area into several small areas, measure the brightness of each area separately, and consider the final exposure parameters comprehensively, which is suitable for shooting complex scenes.

Different metering modes are suitable for different shooting scenes and requirements. You can choose the most appropriate one according to the actual situation.

How to set up the camera position of StreamCam One?

In order to present a better live streaming effect, we suggest that you place the camera 70cm away from the subject to be filmed.

How to upgrade the firmware of StreamCam One?

If there is a new firmware version of StreamCam One, our EMEETSTREAM app will remind you. In order to better use StreamCam one, we suggest that you upgrade the firmware to the latest version.

Please follow the steps below to upgrade StreamCam One:

Before upgrading, please make sure that the StreamCam One has a battery level of more than 50%. If the battery level is insufficient, please charge the StreamCam One first.

Turn on the StreamCam One, connect it to your phone. Please refer to the instructions for the connection procedure.

After connecting successfully, enter the EMEETSTREAM software and click Camera Settings, then select Firmware Update

If you want to upgrade the wireless mic together, please make sure that the wireless mic is magnetically absorbed on the camera and follow the instructions of the app.

Make sure that your mobile phone and device are as close as possible during the upgrade process, and that the current network status is stable. In order to ensure the smooth progress of this upgrade operation, we strongly recommend that you do not perform any other operations and wait quietly for the device to upgrade. The entire upgrade process takes about 5 minutes;

After the upgrade is successful, StreamCam One will reboot automatically. Please wait quietly and the firmware information will be updated to the latest version after rebooting.

Note: StreamCam One currently only supports mobile phone EMEETSTREAM for firmware upgrades. The upgrade function of computer software EMEETSTREAM will be developed later.

How to turn on and off the wireless microphone?

If the wireless microphone is placed on the corresponding camera, then just press the camera power button, and the wireless microphone will turn on with the camera.

Press and hold the wireless microphone button for 2 seconds to turn the wireless microphone on /off.

If the wireless microphone is powered on without being connected to the camera, it will shut off after 5 minutes of inactivity.

How to pair the wireless microphone?

We have already paired the wireless microphone with the camera in advance, just turn on the mic and it's ready to use, no need to pair it again.

If you want to re-pair the camera with the wireless microphone, or need to pair a new wireless microphone with the camera, please do the following operation:

1. Connect the camera and mobile phone, please refer to xxxxx

2. Place the wireless microphone to be paired on the corresponding camera, and double-click the mute button of the wireless microphone

3. If the light of the wireless microphone changes from flashing blue to steady blue, the wireless microphone is successfully paired with the camera.

The wireless microphone battery

Battery capacity:160mAh

Battery life:9.5h

Charging time:1.5h

Use while charging:Yes

Charging Method: Place it on the magnetic suction point of the camera to charge.


1. As long as you place the wireless microphone on the camera's magnetic suction point, whether the camera is turned on or off, you can charge the wireless microphone. The power indicator light of the wireless microphone flashes in red when charging, and when the wireless microphone is fully charged, the power indicator light is extinguished.

2. The wireless microphone only supports this charging method.

How to upgrade the firmware of a wireless microphone?

Wireless microphones need to be magnetically adsorbed on the camera before they can be upgraded. They cannot be upgraded separately. Please refer to xxxxx for specific steps.

How many pickup modes are there for a wireless microphone?

Wireless microphones have two sets of pick-up gain, long-range pick-up gain and near-field pick-up gain are different, which can meet your needs for different scenarios.

If you attach the wireless microphone to the camera, the microphone can pick up audio within 1-3 meters, effectively achieving long-range pick-up; if you take off the wireless microphone and clip it on the collar, the microphone can pick up audio within half a meter, picking up only your voice, effectively isolating other voices in the venue.

How to switch the wireless microphone to the built-in microphone pickup?

If you turn on both the camera and the wireless microphone, the wireless microphone will automatically connect to the camera. At this time, the wireless microphone will be used as a pickup device. If you want to pick up voice via the built-in microphones, we suggest that you turn off the wireless microphone. The sound source indicator on the front will change from blue to green (after you set the network for the camera and connect to the mobile phone wirelessly). At this time, it is the built-in microphones that pick up voice.

StreamCam One battery

Battery capacity:5200mAh

Battery life:8h

Charging time:4h

Use while charging:Yes

Charging Method: Charge by plugging in the accompanying type-c data line to the power adapter or computer.

Note: We recommend using a 5v⎓2a power adapter to charge your StreamCam One to reduce charging time.

How long can the StreamCam One be stored when it is turned off?

After the product is fully charged, it can be stored for 1.5 years in the off state.

Can StreamCam One be charged with other data cables?

Yes, Please use the type-c data cable to plug into the back interface of the StreamCam One to charge. We recommend that you use the data cable we provide to get a better user experience when the data cable is not lost.

How to View the Current Wi-Fi Signal on a Camera?

Refer to xxxxx to connect the camera and the phone, enter the EMEETSTREAM app, click Camera Settings, and select the button function to be: Wifi signal display. At this time, press the camera power button briefly, the back power indicator light will be lit green to display the current wifi signal strength, the stronger the wifi signal, the more lights will be lit.

How to connect the camera to the wired network?

The camera has a built-in WiFi module, you can use our EMEETSTREAM software to wirelessly connect your mobile/computer to the camera. If you want a more stable network, you can use a wired network to access the camera.

If you want to connect your phone to the camera now, please connect your phone to the same network as the camera. At this time, the phone can wirelessly connect with the camera.

Note: If the status indicator light is red or green and always lit, your camera cannot be connected to the Ethernet.

Networks supported by the camera

The camera supports using the following network connections:

-2.4G/5G WiFi

-Wired internet

-Mobile network

Does the camera support POE?

Yes. We recommend that you use the following POE adapters for connection.

How to turn on live streaming with the camera?

The camera needs to be used with our EMEETSTREAM software for live streaming. Please refer to xxxxx for live streaming; if you connect the camera to the computer via a USB cable, you can also live stream through third-party streaming software.

Can live streaming, recording, and USB camera mode be enabled simultaneously?

No. Our camera does not support wired connection to the computer while recording to the sd card. If you plug in the computer while recording to the SD card and open the system camera, the computer will display a black screen; if you plug in the computer and open the system camera, select recording to the SD card, it will be displayed that the camera is occupied, the status indicator light on the front of the camera will flash yellow. Of course, we support you to live broadcast and record to the SD card at the same time, or live broadcast and connect to the computer at the same time.

Note: If you want to enable all three at the same time, please select to record video to the mobile/computer.

How to use the camera as a USB camera?

StreamCam one can be used as a USB camera. With StreamCam One turned on, please use the data cable with the Type-C interface to connect to the back interface. Connect the other end of the data cable to the computer, open the computer system camera to select StreamCam One, and the picture can be displayed.

How to save video to SD card?

Before recording to the SD card, you need to insert the SD card into your camera.

1. Turn on the camera and press the power button on the back of the camera (please make sure that the camera button function is set to record to the storage card, otherwise the camera will display a recording error, and the front status indicator of the camera will flash yellow). If the front status indicator of the camera turns red, the camera has enabled recording.

2. Refer to xxxxx to connect the camera to the mobile phone, enter the EMEETSTREAM app, click record, select record to the storage card, you can also select the desired resolution, click start recording to record it to the SD card, at this time the front status indicator of the camera turns red.

How to view and download SD card recordings?

Refer to xxxxx to connect the camera to your mobile phone, enter the EMEETSTREAM app, select settings, click on the storage card, you can view your recording, click on the icon at the bottom right to download or delete the video.

Of course, you can also take out the storage card, insert the storage card into the card reader to connect to the computer, you can view your recording on the computer and select to download.

How to check the remaining recording time of an SD card?

Please refer to xxxxx to connect the camera and the mobile phone, enter the EMEETSTREAM app, click record, select record to the storage card. When you select the resolution you want, the app will show you the recording time at the current resolution.

How to save video to phone/computer?

If you want to save the recording to your phone/computer, please refer to xxxxx to connect the camera to your phone. Enter the EMEETSTREAM APP, click Record, and select Record to Phone. You can also select the resolution you want.

Note: When selecting to record to the phone or computer, the color of the status indicator light on the front of the camera will not turn red to indicate that you are recording.

What is the difference between recording in computer/mobile phone and recording in SD card?

Recording in SD card: Record the picture presented by the camera connected to the SD card;

Recording in computer/mobile phone: Record the picture displayed in the mobile phone/computer (which may include the picture of three devices, depending on the preview picture displayed in the mobile phone/computer software when you switch the device).

How does the camera record while live streaming?

Please refer to xxxxx to connect the camera and the phone, enter the EMEETSTREAM app, click on live broadcast, select the platform you want to live broadcast on, and then click on record. You can synchronize the live broadcast picture.

If you want to record during the live broadcast, you can set the key function to record to the SD card. Please refer to how to save the video to the SD card, and press the power button briefly to record the camera image.

Note: The image of the SD card recorded by enabling the key recording is only the image taken by this camera.

Compatibility with SD cards

How to format an SD card?

Please refer to xxxxx to connect the camera and the phone, enter the EMEETSTREAM app, click camera settings, and select format storage card.

How to insert/remove an SD card?

Insert the micro SD card with the side with contacts facing down into the card slot. To remove, press the installed micro SD card inward and it will pop out. Remove it from there.

Can the camera be connected to an external microphone for use?

Yes.We support 3.5mm TRS audio input. You can connect the 3.5mm TRS microphone interface to the microphone interface on the back of the camera. If the audio indicator light on the front of the camera is always on, it indicates that the microphone is connected.

Can the camera be connected to a USB microphone for use?

No. But we support your microphone connected to the 3.5mm TRS port.

The microphone of the camera has priority in picking up sound

3.5mm external microphone > Wireless microphone > Built-in microphone

Note: The pick up priority order cannot be changed by related operations.

What function does the Type-C port have?


-Powering external devices

-Access to wired network (POE)

-Connect to the computer to realize the USB camera function

Indicator light

Key Function

Press and hold for 2s: Power On/Off.

Press and hold for 10s: Force Shut down.

Short press:

-No effect

-Record to micro SD card

-Display WIFI signal.

You can modify the key function through the EMEETSTREAM app. Please refer to the xxxx to connect the camera to the phone, enter the EMEETSTREAM app, click the camera settings, and select the function you want.

How to supply power to the camera through the USB-C port?

Refer to xxxxx to connect the camera to the phone, enter the EMEETSTREAM app, select the camera settings, and enable the power supply function for external USB devices.

How to supply power to the camera through the USB-C port?

Refer to xxxxx to connect the camera to the phone, enter the EMEETSTREAM app, select the camera settings, and enable the power supply function for external USB devices.

Camera auto shut-off

When your camera is turned on, the camera will automatically shut down to save power if the camera is idle for 15min.

If your camera is in the following state, it means that your camera is in idle state:

-Not connected to mobile phone/computer (wireless)

-Camera not opened when connected to computer via USB

-No button operation

-Supply power to external device without connection and button operation

Note: If you want to change the automatic shutdown time of the camera, please connect the camera to the mobile phone, enter the image settings in the EMEETSTREAM app, click automatic shutdown, and select the automatic shutdown time you want.

Can I use it without connecting to EMEETSTREAM?

Yes, you can connect the camera to the computer with a data cable, and the camera can be used as a USB webcam.

Does the camera have anti-shake function?

No, this camera does not support anti-shake. We suggest you use a tripod in a fixed position or a gimbal with anti-shake for use in a mobile state.

Does the camera support autofocus?

No , StreamCam One is a fixed focus camera that captures a clear image within 70 cm.

Camera System Compatibility

Win7, Win8, Win10, Win11

Note: The above only represents the system version supported by the camera. To know the version supported by the EMEETSTREAM software, please refer to xxxxx.

What is the purpose of the seat stickers inside the package?

If you have purchased two or more StreamCam One, you can attach the same serial number stickers to the paired camera and wireless microphone, making it easier for you to quickly distinguish each pair of devices.

USB-C to Ethernet Adapter Compatibility

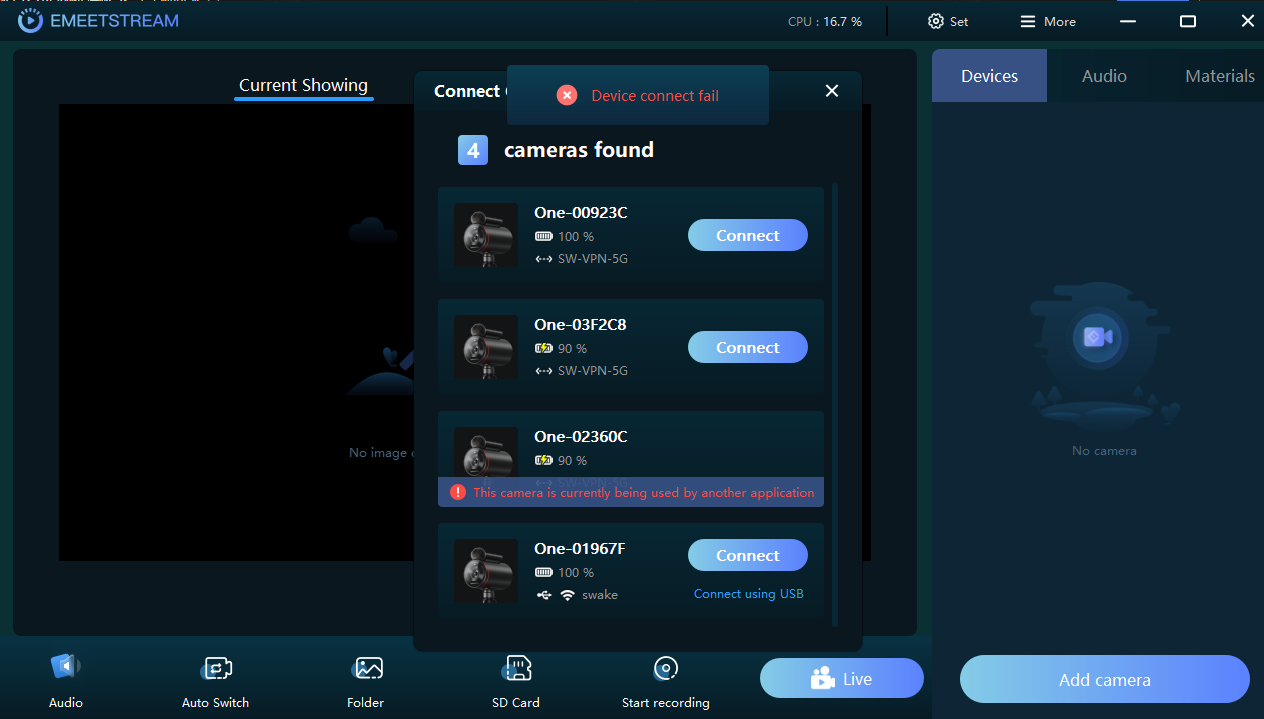

Camera Connection Tutorial

When you open the EMEETSTREAM application for the first time, you need to enable both wifi and Bluetooth on your device to access the location, and it will search for nearby cameras.

To configure the camera's connection to the network, select the EMEET Camera (multiple selections are possible), and you will see a network configuration button lit up.

Then you can choose the connection method you want to use, you can select the connection type you want to use.

Using Wi-Fi Wireless Network

You will see a list of available wifi networks from the EMEET camera. Select the network and enter password.

Finally, you need to confirm whether the EMEETSTREAM application mobile device has also joined the same network (if it's already the same then no need to confirm again);

Return to home page and you have completed the adding process.

Using the hotspot feature of EMEET Camera

Use the hotspot feature of EMEET Camera.

Select one of you EMEET Camera as a router (In order for other EMEET cameras and your mobile device can access this camera's hotspot)

You'll need to set a hotspot password for the EMEET Camera

Connect the camera to the computer using a wired connection

If you have converted the EMEET camera into a wired webcam device for use, please connect the EMEET camera to the PC with a wired USB cable.

EMEETSTREAM application provides a PC program which supports wired connection for adding Emeet cameras.

Why does the eMeet camera connection require permission to request an address, and is it secure?

When using the EMEETSTREAM application, you will receive two permission request. Location permission and Bluetooth permission request; enabled to ensure that the program can scan and connect your EMEET camera smoothly.

Which mobile devices is the EMEETSTREAM app compatible with?

Applicable to all mobile devices running iOS 11 or above, or Android 8 or above.

When I receive a call while using EMEETSTREAM, will the camera be affected during the call?

Can the APP be switched to run in the background during live streaming?

If you are streaming and wish to switch the EMEETSTREAM app to the background

on the iOS device, streaming will only be maintained if it is done through a Wi-Fi router or wired Ethernet.

If your iOS device is using the EMEET Camera Hotspot mode, this will cause the streaming to disconnect.

On an Android device, the device will continue streaming

Does the EMEET camera support other live streaming applications to get audio and video streams?


The EMEET camera provides a RIST protocol push streaming media. You can fill in the selected address, and the video stream of the EMEET camera will actively push the stream to the address. The switch function and address function are available in the camera settings.

Can EMEETSTREAM be used as a virtual camera?

Only the EMEETSTREAM PC application supports this feature and it is enabled by default.

After launching the EMEETSTREAM PC application, select the EMEET Virtual Camera in the application you wish to use in.

What happens if EMEETSTREAM is disconnected from the camera?

If there is a communication interruption between the EMEETSTREAM APP and the EMEET camera, the recording of the EMEET camera will continue, but the image will be lost until you reconnect the EMEETSTREAM to the camera.

The EMEETSTREAM APP will automatically reconnect to the camera, and if it fails to reconnect within 15 minutes, it will display that the camera is offline.

Why does the camera image change by itself?

If you find that the camera lens screen switches automatically, it may be the automatic position switching function has been switched on.

Automatic position switching function switch.

Set a password to access your EMEET camera

If you want to prevent others from connecting to your camera, you can set an access password for the camera from the Camera Settings in the EMEETSTREAM application.

When the set up is completed, other mobile devices need to enter the corresponding access password for the first time, in order to access the camera. As long as it is in the connection state, you can turn off the access restriction function at any time.

What if I forgot my camera access password?

If you have forgotten your password, you can restore your camera to its factory settings by long press the restore button on the camera.

Please note that this will wipe out all the camera settings and recorded wifi info.

After restoration completed, you can connect to your camera without a password.

Change camera LED light display parameters?

You can adjust the brightness of the indicator light through the EMEETSTREAM app. As if you are live streaming in different lighting environments and having issues seeing the indicator light due to visual interference.

On - Turn on the indicator light; this is the default setting

Off - No indicator lights will be on when it is turned off

Once you have closed the setting menu, all changes will effect immediately.

How to upgrade your EMEET camera firmware version?

Updating the camera firmware requires the camera to remain connected to the EMEETSTREAM app and the camera must be idle (not recording or streaming) in order to update the camera.

When there is a new version notification, you will see an update notification dot, indicating there is an update available.

Click on Update Now to update the latest firmware to your camera.


The camera battery level need to be above 50%;

The download speed and duration may vary according to the you network;

Keep the camera and EMEETSTREAM application connected during the update;

When the update has completed, the camera will automatically restart and the application will return to the home page. Wait for the camera to complete the self-check and boot up, then it will automatically reconnect.

How to turn on the RIST feature?

In the camera settings, you can find the RIST option, enabling the feature will support you to get the streaming video of the camera directly with any application that supports this protocol.

How to cancel the EMEET camera power auto shut down?

With no connection, no recording or streaming, the camera defaults to shut down automatically after 15 minutes of idle to save battery power. You can change this automatic shutdown time in the camera settings; the options are: 15min, 30min, 1h, 2h, never shut down.

Audio mixer

The app can control the audio source of each EMEET camera; when you choose to open the sound of multiple EMEET cameras, audio sources will be mixed together;

streaming audio switch- you can switch the speaker icon under the video window to turn on and off the streaming audio sound.

Note: when increasing the local volume of the mobile device, it is recommended to use headphones to avoid echo feedback caused by the sound of the mobile device and the microphone of the camera.

Function and Meaning Explanation:

1. Volume visualization bar, which can tell the current audio volume size and active status;

2. Volume adjustment slider, which can increase the output of camera audio volume;

3. Mute button - when disabled, the EMEET camera will not record any sound.

How to adjust the image effect of EMEET camera?

You can access the image adjustment content by clicking on the first icon through the camera module cards listed below;

This page allows you to view the changes made in real time, taking effect immediately.

Function and Meaning Explanation:

1. HDR: stands for High Dynamic Range, which can display a larger range of brightness (dynamic range), and turning it on will give you a clearer imaging effect.

2. Anti flicker: Please select 60hz or 50hz depending on your local frequency.

3. Auto flip: This setting allows you to rotate the video vertically 180°:

Off (no rotation): If you invert the camera, the image will not flip.

On (rotate): The application will detect if the camera is facing up or inverted and adjust accordingly.

4. Exposure metering: Metering adjusts the exposure within the selected frame of the image, available options: Spot, Center, Average.

5. Mirroring: You can adjust the left and right and up and down direction of the image mirror flip.

How to enable Intelligent Camera Position and Switcher?

When multiple machines are connected, the EMEETSTREAM application can automatically conduct the screen switching.

Click the icon under the video window to turn it on;

The function will not be available if only one EMEET Camera is connected.

How to set time parameters for machine seat broadcast switching?

You can change your favorite director switch mode in the global settings;

Unified settings: cameras added by default program will participate in the rotation; You can light up the frame of the tab to select;

Individual settings: You can also set the duration of the playback for each position independently.

What is intelligent tracking?

This function allows the camera to conduct face tracking like an independent cameraman, which helps you to complete your shooting like in a professional broadcast studio.

Steps: Click the AI director assistant icon on the camera tab to enter the director window; Turn on the intelligent tracking to activate this function.

How to enable picture scaling?

After entering the director's window, you can freely drag and select the area of the picture you want to display;


You can move the display picture by dragging with your fingers under the director's window;

Stretch the zoom range multiple times with two fingers; Release to take effect

Drag the display area with one finger; Release to take effect

Adjust the default zoom size parameters

The default zoom size clicked can be adjusted in settings, with a convenient zoom window and a quick switch between full screen display from 1.0x-3.0x.

There is a convenient scaling window and a fast switch between full-screen display.

How to set the speed of the default pan/zoom transition?

In the director window, the zoom display window can be freely changed in size and position; During this process, there will be a transition duration time. You can set the duration of the selected effect, which applies to all positions and cameras.


Simultaneously live stream to multiple platforms

Add your live platform, then you can select multiple target platforms.

How to push stream directly without using a mobile device?

After I have completed the push stream, can I turn off my mobile device?

The camera direct push function, is the camera independent streaming to the live platform function. Select your camera to fill in the target platform information. (at present temporarily can not save the added address).

Yes, once you have completed the push stream to your target platform, you can continue to stream even your mobile device has been switched off. As cameras independently push streaming to the live platform, it does not go through your mobile devices.

Steps to push stream: Select the camera that you wish to stream, then fill in the target platform info. (Please note that saving history platform info is temporarily unavailable)

Recorded setup instructions

You can do recording through the recording function, recording to micro SD card, or local recording through the application.

How to record video while live streaming?

You can turn on the recording function while streaming, and you can choose to record them to the microSD card or the local application.

Which live streaming platforms do we support?

How do I adjust the device input resolution?

You can set the video input quality of your camera

Note, however, that you cannot change the Settings if you are live-streaming

How to choose a live room?

The optimal live stream room would be an independent and quiet space, with enough area. It can be a studio, an office, a room at home or a partition in a store.

How should my live streaming background look like?

The best background for a live room is light and solid-colored, simple, and bright-based, without being too fancy. Of course, a green screen can also be chosen, so you can select any virtual background based on your needs.

(However, it is not recommended to choose the green screen to use regularly. Relatively speaking, the live room scene built with the green screen is not coordinated enough and may have a little abrupt feeling, and the effect is not as good as that directly built.)

On the other hand, the Tik-Tok live room is mostly gray-color-based, which is simple, and gray is a neutral color, which can be matched with any color. In addition, the color gray is the most suitable background color for the camera, which will not be overly-exposed, and the visual comfort is conducive to highlighting the color of clothing, makeup, or products.

How should I place the fill light that I've bought to enhance the overall lighting performance?

In addition to proper decoration and reasonable layout, the most important thing for a good live broadcast room is "lighting".

Good lighting layout has three uses:

First, effectively enhance the overall image of the anchor;

Second, show the highlights of the brand and product;

Third, change the atmosphere of the live broadcast.

Room light:

This is the ceiling light of the live broadcast room, which can also be an LED lamp, mainly responsible for the room lighting; the function of the environment lamp is to make the whole live broadcast room bright.

Main Light Source:

The main light source refers to the main light that reflects the appearance of the main host and products, which plays the role of the main lighting. It can make the face of the main host and the product evenly illuminated and whiten the skin simultaneously, making the face of the host and the product look mild. Using a spherical lamp as the main light source is recommended because the light emitted by the spherical lamp is soft enough, preferably with a color rendering index of more than 96%.

Fill light:

Generally, the side is illuminated at 45 degrees and cannot be directly illuminated from the front or back. This is mainly to make the picture softer. The skin of the anchor looks glossy and delicate. Now many live rooms use unique circular fill lights for anchors, which can both fill and soften the light.

The most commonly used lights in the live room include the main light, auxiliary light, contour light, top light and background light.

Main light:

It is the leading light source, which determines the main tone of the picture. In lighting, adding auxiliary, background, and outline light only makes sense after determining the main light. The live broadcast can make the host's face evenly lit, which is the first step in lighting beauty. Placement suggestion: Place it in front of the host, forming an angle of 0-15 degrees with the lens axis on the video camera. The light from this direction is sufficient and uniform, making the host's face soft and skin whitening. However, the disadvantage of the main light is that there will be no shadows when it is illuminated from the front, and there will be a lack of layering.

Auxiliary light:

To improve the level and tone of the shadow surface, auxiliary light should be added when lighting. In the live broadcast, the overall stereo feeling can be increased by adjusting the auxiliary light, which can highlight the outline of the side.

Placement suggestion: The auxiliary light at a 90-degree angle on the left and right sides of the host and the auxiliary light at a 45-degree angle on the left front can produce shadows on the facial contour to create a three-dimensional texture. The auxiliary light at a 45-degree angle from the right back can light up the contour on the rear side, making a strong contrast with the front light, which is beneficial to create the overall host shape. However, attention should be paid to adjusting the light ratio to avoid over-exposure of the face or being too dark in some parts.


Backlight, also known as a rim light, is usually placed behind the anchor to outline the anchor's silhouette and highlight the subject.

Placement suggestion: Set it in the position behind the anchor, and the light from behind can make the anchor's outline clear and separate the anchor from the live room background, highlighting the main body. As a backlight, be sure to pay attention to the brightness adjustment of the light. If the light is too bright, it will directly cause the effect of Buddha's light shining in the back of the anchor, making the main part of the picture too dark. At the same time, the camera will cause glare; improper use can easily cause adverse effects.

Top light:

Top light is a light source secondary to the main light, shining from the top position to add lighting to the background and ground so that the shadows of the host's cheekbones, chin, nose, etc., can be lengthened visually to lengthen the facial contour to achieve the effect of a thin face. This is also one of the commonly used lights for anchors.

Placement suggestion: The light coming down from above the host can produce a strong sense of projection and achieve the effect of a thin face. Top light has many advantages, but the disadvantage is that it can quickly form shadows under the eyes and nose.

Background light:

Its primary function is to set off the main body or render the atmosphere to make the brightness of the live broadcast room as uniform and harmonious as possible.

Placement suggestion: However, the background light is a uniform lighting effect, so the lighting should be arranged in a low light and multi-source way.


No. If your wireless microphone battery is damaged, you can click the link xxxxx to purchase a new one, and then follow the instructions xxxxx to pair the new wireless microphone with the camera.

Note: The wireless microphone battery is not removable and replaceable, please do not disassemble and replace it privately.

StreamCam One电池坏了还能用吗

Sure. To avoid any potential issues caused by a defective battery, we allow you to power streamCam one with an external power source. All the functions of streamCam one will work properly when powered by an external power source.

Please note that the battery of streamCam one is not removable and should not be taken apart or replaced.


Before resetting the camera, please turn on the camera and press the reset hole with a mobile phone needle for 2s. At this time, your camera will reset the saved settings information. If you have connected the camera to the network before, the status indicator light on the front of the camera will change from green to green flashing, indicating that the camera has been reset.

After resetting the camera, the following settings information will be restored to the default settings: delete the connected wifi information;

short press function of power button;

light brightness;

camera access password;

automatic shutdown time;

power supply for external power supply;

open power supply with USB cable;

automatic switch wide angle mode;

rtsp mode;

enable automatic recording function.

What to do if the camera crashes?

If your camera is not responding, please refer to xxxxx to restart the camera. The camera will be back to normal after restarting.

How to hard reset the camera?

If your camera is not working properly or not responding, please press and hold the power button for 10 seconds and then power on the camera again. This will complete the hard reset of the camera. Please make sure to press and hold the power button for 10 seconds even if the camera appears to be off and unresponsive at the time.

Note: Hard reset will not undo any settings saved on the camera, your network settings and logged-in livestream accounts will remain saved. If you want to reset the settings information on the camera, please refer to xxxxx.
